26*26*95mm RJ45 POE 1000 Surge Protector for Lightning Protection at 48V Line Voltage
Product Details:
| Place of Origin: | Fujian, China |
| Brand Name: | SY |
| Model Number: | SY3160 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 sets |
|---|---|
| Price: | $5.00 - $8.00/sets |
| Packaging Details: | Standard export package |
| Supply Ability: | 100000 Set/Sets per Month RJ45 surge protector |
|
Detail Information |
|||
| Interface: | Ethernet, RJ45 Cat6 | Data Rate: | 1000Mb/s |
|---|---|---|---|
| Line Voltage: | 48V | Maximum Operating Voltage: | POE 75V |
| Maximum Discharge Current: | 5KA(8/20μs) | Protected Pins: | (1,2)(3,6)(4,5)(7,8) |
| Grounding: | Grounding Clip & Grounding Terminal | Shell Material: | ABS |
| Weight: | 70g | Size: | 26*26*95mm |
| Port: | Xiamen | ||
Product Description

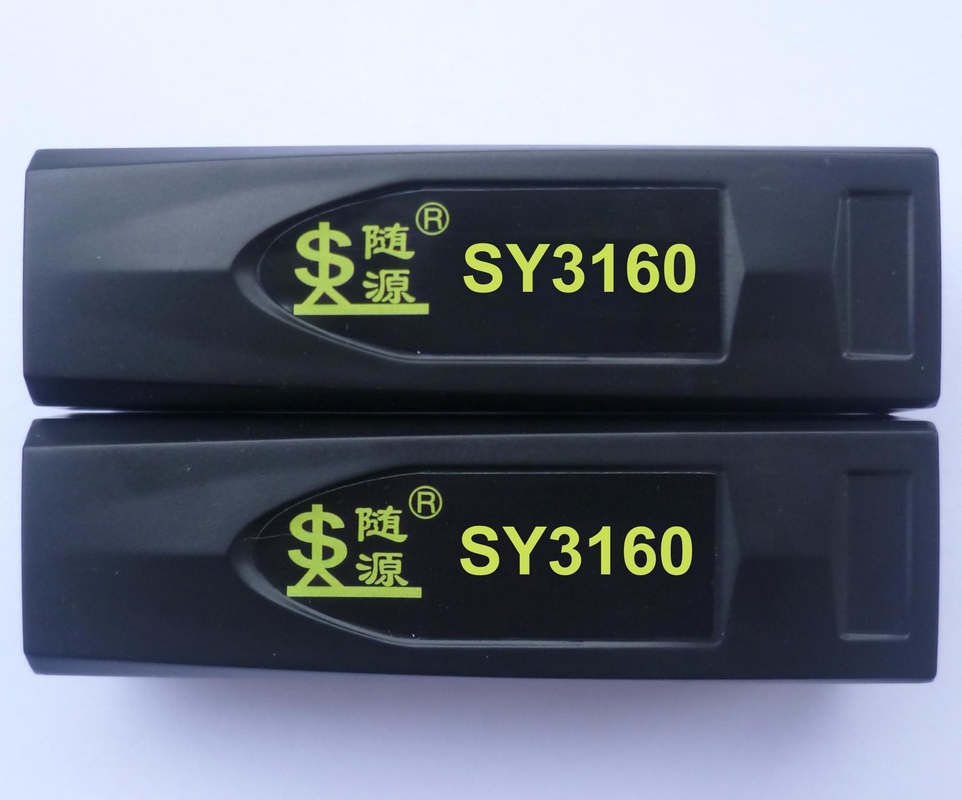

SY3160 rj45 surge arrester protection poe
1. Specifications Details
| Model | SY3160 RJ45 surge protector |
| Interface | Ethernet RJ45 Cat6 , with POE |
| Data rate | 10/100/1000Mb/s |
| Line voltage | 60V |
| Max continuous operationg voltage | POE 75V |
| Max surge discharge current | 5KA(8 to 20 μ s) |
| Protected pins | All pins |
| Mounting | Grounding clip & Grounding terminal |
| Shell material | ABS |
| Dimensions | 26*26*95mm |
| Package inch | 40*26*105mm |
| Weight | 52g |
2.Dimensions
3.Main feature:
--ABS material profile shell, attractive and durable, good shielding effect;
--RJ 45, convenient to use, reliable connection;
--Introducing multilayer protection circuit, selecting the latest high-speed surge protection device of quick response, low output residual voltage and super transmission performance.
4.Package
Surge protector x 1

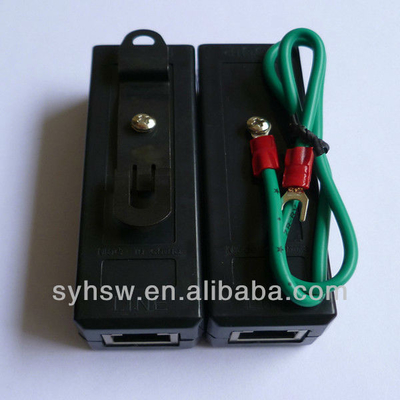

Grounding terminal/Grounding clip x 1
Manuals/Instructions x 1
5.Certificates
CE certificate
Compliant to ROHS
Lead-free
