Grounding Clip Terminal Mounting 6V Surge Protector for RJ45 Cat6 Operating Voltage
Product Details:
| Place of Origin: | Fujian, China |
| Brand Name: | SY |
| Model Number: | SY3161 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 pieces |
|---|---|
| Price: | $6.00 - $9.00/pieces |
|
Detail Information |
|||
| Connection: | Ethernet, RJ-45 Cat6, GigE | Line Voltage: | 5V |
|---|---|---|---|
| Operating Voltage: | 6V | Data Rate: | 10/100/1000Mb/s |
| Max Surge Discharge Current: | 5KA(8 To 20μs) | Protected Pins: | All Pins |
| Shell Material: | ABS | Weight: | 52g |
| Size: | 26*26*95mm | Mounting: | Grounding Clip & Grounding Terminal |
Product Description
SY3161 ethernet computer surge protector rj45
1. Specifications Details
| Model | SY3161 |
| Interface | Ethernet RJ45 Cat6 with ALPU GigE |
| Data rate | 10/100/1000Mb/s |
| Line volatge | 5V |
| Max continuous operating voltage | 6V |
| Max surge discharge current | 5KA(8 to 20 μ s) |
| Protected pins | All pins |
| Mounting | Grounding terminal & Grounding clip |
| Shell material | ABS |
| Dimension | 26*26*95mm |
| Package inch | 40*27*105mm |
| Weight | 52g |
2. Dimensions
3.Main feature:
1.ABS material profile shell, attractive and durable, good shielding effect;
2.RJ 45, convenient to use, reliable connection;
3.Introducing multilayer protection circuit, selecting the latest high-speed surge protection device of quick response, low output residual voltage and super transmission performance.

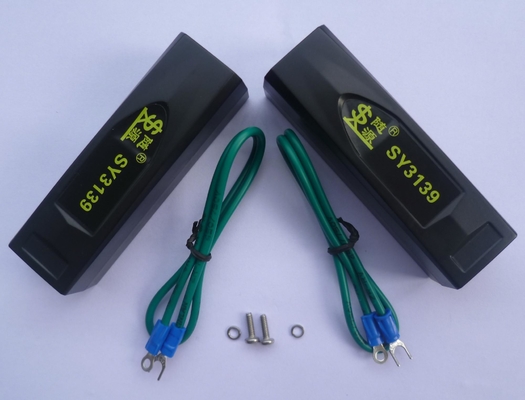

4.Package
Surge protector x 1
Grounding terminal / Grounding clip x 1
Manuals/ Instruction x 1
5.Certificates:
CE certificate
Compliant to ROHS
Lead-free
6.Service
A. OEM
B. If there is other requirements for surge protector, pls send your specs, we will design for you.
Welcome your inquiry, we will do our best to support you!
