Grounding clip Grounding terminal RJ45 Cat6 Network Ethernet Surge Protector with Poe protection 26*26*95mm
Product Details:
| Place of Origin: | Fujian, China |
| Brand Name: | SY |
| Model Number: | SY3156 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 pieces |
|---|---|
| Price: | $6.00 - $11.20/pieces |
| Packaging Details: | Package inch 40*26*105mm |
| Supply Ability: | 10000 Piece/Pieces per Month poe surge protector |
|
Detail Information |
|||
| Connection: | Ethernet RJ 45 Cat6. POE | Line Voltage: | 5V POE 48V |
|---|---|---|---|
| Max Operating Voltage: | 6V, 60V DC Power | Max Surge Discharge Current: | 5KA(8 To 20μs) |
| Data Rate: | 10/100/1000Mb/s | Protected Pins: | All Pins |
| Shell Material: | ABS | Size: | 26*26*95mm |
| Weight: | 52g | Mounting: | Grounding Clip & Grounding Terminal |
| Port: | Xiamen | ||
Product Description
Surge Protection Device/ SPD / RJ45 surge protector SY3156
RJ45 surge protector is special used in the network system and its different types can satisfy different defence thunder areas. The connector of its input and output is RJ45 male/female connector, which is easily connected and installed.
It is main used in service equipment, inner LAS and HuB, and boardband RJ45 interface protection for protecting the equipment which will be damaged by the over voltage of the earth or the line inductance.
SY3156 with POE is one of these surge protector using in protection for network.
1. Specification details
| Model | SY3156 Surge Protector |
| Interface | Ethernet ,RJ45 Cat6, with POE |
| Data rate | 10/100/1000Mb/s |
| Line voltage | 5V, POE48V |
| Max operating voltage | 6V, 60V DC power |
| Max surge discharge current | 5KA(8-20 μ s) |
| Protected pins | All pins |
| Mounting | Grounding clip & Grounding terminal |
| Shell material | ABS |
| Weight | 52g |
| Size | 26*26*95mm |
| Package inch | 40*27*105mm |
2.Dimensions
3. Main feature:
1.ABS material profile shell, attractive and durable, good shielding effect;
2.RJ 45 convenient to use, reliable connection;
3.Introducing multilayer protection circuit, selecting the latest high-speed surge protection device of quick response, low output residual voltage and super transmission performance.

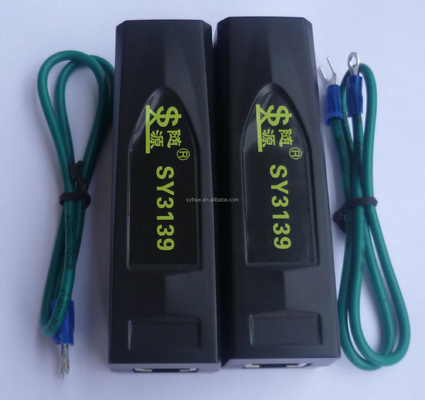

4.Package
Surge protector x 1
Grounding terminal/ Grounding clip x 1
Manuals/ Instructions x 1
5.Certificates
CE certificate
Compliant to ROHS
Lead-free
6.Service
A. OEM
B. If there is other requirements for surge protector, pls send your specs, we will design for your!
Welcome your inquiry, we will do our best to support you!
