ABS Shell Material Ethernet Network RJ45 Surge Protector Thunder Lightning Arrester
Product Details:
| Place of Origin: | Fujian, China |
| Brand Name: | SY |
| Model Number: | SY3137 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 29 pieces |
|---|---|
| Price: | $7.00/pieces |
| Packaging Details: | Package inch 40*26*105mm |
|
Detail Information |
|||
| Line Voltage: | 5V | Operating Voltage: | 6.8v |
|---|---|---|---|
| Max Current: | 5KA(8 To 20μs) | Data Rate: | 100Mb/s |
| Connection: | Ethernet, RJ 45 Cat6 | Protected Pins: | (1,2)(3,6)(4,5)(7,8) |
| Shell Material: | ABS | Weight: | 52g |
| Size: | 26*26*95mm | Mounting: | Grounding Clip & Grounding Terminal |
Product Description
μ Lightning arrester / RJ45 surge arrester SY3137
RJ45 surge protector is special used in the network system and its different types can satisfy different defence thunder areas. The connector of its input and output is RJ45 male/female connector, which is easily connected and installed.
It is main used in service equipment, inner LAS and HuB, and boardband RJ45 interface protection for protecting the equipment which will be damaged by the over voltage of the earth or the line inductance.
SY3137 with RJ 45 is one of the surge protector using in protection for network.
1. Specification details
| Model | SY3137 |
| Interface | Ethernet, RJ45 Cat6 |
| Data rate | 100Mb/s |
| Line voltage | 5V |
| Operating voltage | 6.8V |
| Max urge discharge current | 5KA(8-20 μ s) |
| Protected pins | (1,2)(3,6)(4,5)(7,8) |
| Mounting | Grounding clip & Grounding terminal |
| Shell material | ABS |
| Weight | 52g |
| Size | 26*26*95mm |
| Package inch | 40*27*105mm |
2. Dimensions
3.Main feature:
1.ABS material profile shell, attractive and durable, good shielding effect;
2.RJ 45 convenient to use, reliable connection;
3.Introducing multilayer protection circuit, selecting the latest high-speed surge protection device of quick response, low output residual voltage and super transmission performance.

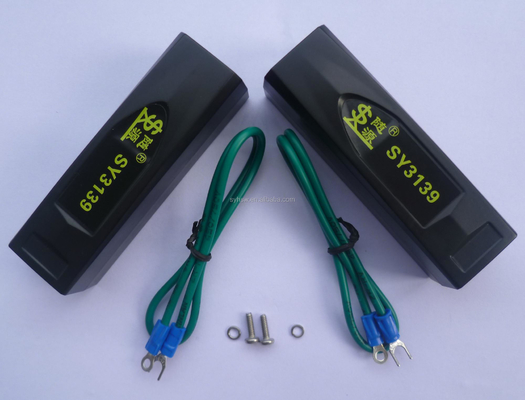

4.Package
Surge protector x 1
Grounding terminal/Grounding clip x 1
Manuals/Instructions x 1
5.Certificates
CE / ROHS / Lead-free
Welcome your inquiry, we will do our best to support you!
If there is other requirements for surge protector, pls send your specs, we will design for you!
