Maximum operating voltage POE 75V SY3158 S10/100MBit Network POE SPD RJ45 Surge Protector
Product Details:
| Place of Origin: | Fujian, China |
| Brand Name: | SY |
| Model Number: | SY3158 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 sets |
|---|---|
| Price: | $4.50 - $10.50/sets |
| Packaging Details: | 200 sets package inch 55cm*30cm*20cm |
| Supply Ability: | 100000 Set/Sets per Month rj45 surge protector |
|
Detail Information |
|||
| Interface: | Ethernet, RJ45 Cat6 | Data Rate: | 10/100Mb/s |
|---|---|---|---|
| Line Voltage: | POE 48V | Maximum Operating Voltage: | POE 75V |
| Maximum Discharge Current: | 5KA(8/20μs) | Protected Pins: | (1,2)(3,6)(4,5)(7,8) |
| Grounding: | Grounding Clip & Grounding Terminal | Shell Material: | ABS |
| Weight: | 70g | Size: | 26*26*95mm |
| Port: | Xiamen | ||
Product Description
SY3158 S10/100MBit Netwok POE SPD,RJ45 Surge Protector SPD
1.Specification details
| Surge protector with POE | ||||||||
| Ethernet, RJ-45 Cat6 | ||||||||
| Data Rate 10/100 Mb/s | ||||||||
| Line Voltage data and POE 5Vdc | ||||||||
| Maximum Continuous Operating Voltage data and POE 75V | ||||||||
| Protected all Pins | ||||||||
| Maximum surge discharge current: 1.5KA (8 to 20us) | ||||||||
| Two ways for the Ground(Grounding Clip,Ground terminal) | ||||||||
| Other Features: Din, Rack or Wall Mount | ||||||||
| Shell material:ABS or aluminium | ||||||||
| Weight 55g/ABS shell or 79g/aluminium shell | ||||||||
| Dimensions 26mm x 26mm x 95mm | ||||||||
| set Package inch 40mm*27mm*105mm | ||||||||
| 200 sets package inch 55cm*30cm*20cm |
2. Dimensions
3.Main feature:
--ABS material profile shell, attractive and durable, good shielding effect;
--RJ 45 convenient to use, reliable connection;
--Introducing multilayer protection circuit, selecting the latest high-speed surge protection device of quick response, low output residual voltage and super transmission performance.

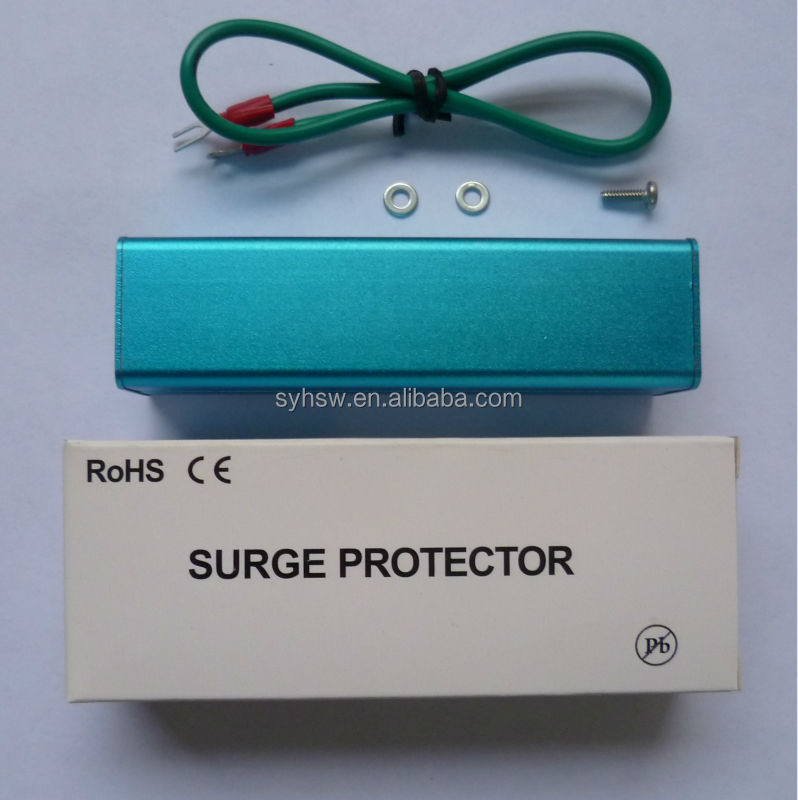

4. Package
Surge protector x 1
Grounding terminal/ Grounding clip x 1
Manuals/ Instructions x 1
5.Certificates
CE certificate
Compliant to ROHS
Lead-free
