48V POE RJ45 Surge Protective with LCD Counter ABS Shell Material and 5V Line Voltage
Product Details:
| Place of Origin: | Fujian, China |
| Brand Name: | SY |
| Model Number: | SY568 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 pieces |
|---|---|
| Price: | $6.00 - $11.30/pieces |
| Packaging Details: | Package inch 40*26*105mm |
| Supply Ability: | 10000 Piece/Pieces per Month surge protector |
|
Detail Information |
|||
| Number Of Pole: | 2 | Rated Voltage: | 48V |
|---|---|---|---|
| Line Voltage: | 5V | Max Operating Voltage: | 6.8V |
| Max Surge Discharge Current: | 5KA(8 To 20μs) | Protected Pins: | All Pins |
| Shell Material: | ABS | Port: | Xiamen |
Product Description

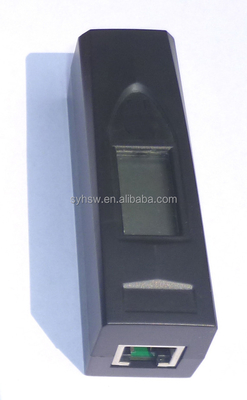

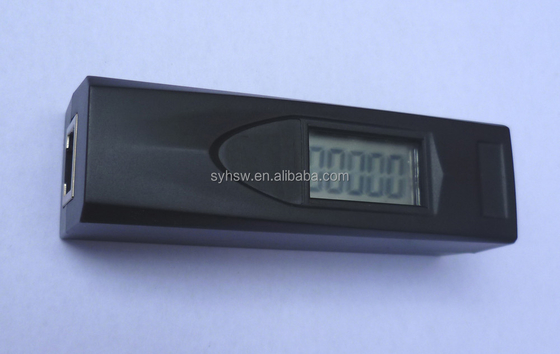

SY568 5v rj45 surge protector
1. Specification details
| Ethernet, RJ-45 Cat6 | ||||||||
| Data Rate 10/100 Mb/s | ||||||||
| Line Voltage data 5V | ||||||||
| Maximum Continuous Operating Voltage 6.8Vpk | ||||||||
| Protected Pins: (1,2) (3,6) (4,5) (7,8) | ||||||||
| Two ways for the Groundging(Grounding Clip,Grounding terminal) | ||||||||
| Maximum surge discharge current:1KA(8 to 20us) | ||||||||
| Other Features: Din, Rack or Wall Mount | ||||||||
| Shell material:ABS | ||||||||

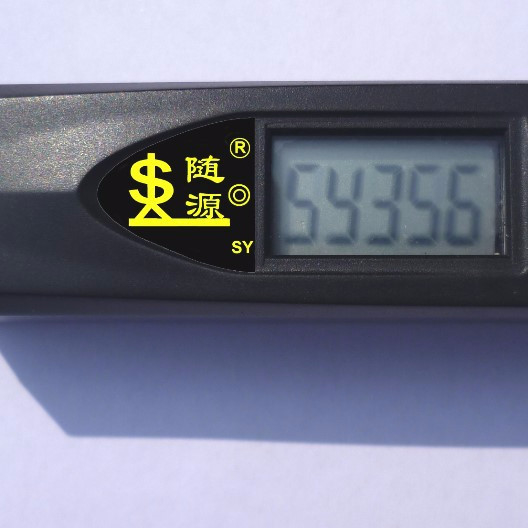

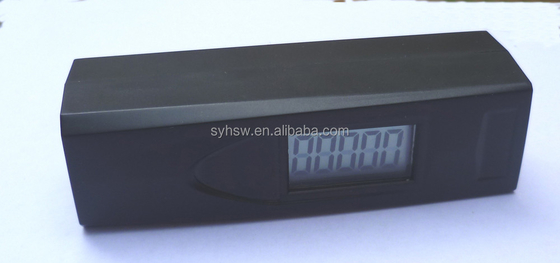

| LCD Surge counter | ||||||||
| Weight 55g ABS shell | ||||||||
| Dimensions 28mm x 27mm x 92mm | ||||||||
| set Package inch 40mm*27mm*105mm | ||||||||
| 200 sets package paper box inch 55cm*30cm*20cm |
2.Dimensions
3. Main feature:
--ABS material profile shell, attractive and durable, good shielding effect;
--RJ 45 convenient to use, reliable connection;
--Introducing multilayer protection circuit, selecting the latest high-speed surge protection device of quick response, low output residual voltage and super transmission performance.
4.Package
Surge protector x 1
Grounding terminal/ Grounding clip x 1
Manuals/ Instructions x 1
5.Certificates
CE certificate
Compliant to ROHS
Lead-free
6.Service
A. OEM
B. If there is other requirements for surge protector, pls send your specs, we will design for your!
Welcome your inquiry, we will do our best to support you!
