RJ-45 Cat6 Connection 48V Surge Protection Device for Grounding Clip Terminal Mounting
Product Details:
| Place of Origin: | Fujian, China |
| Brand Name: | SY |
| Model Number: | SY3161 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 pieces |
|---|---|
| Price: | $6.00 - $9.00/pieces |
| Packaging Details: | Package inch 40*26*105mm |
| Supply Ability: | 10000 Piece/Pieces per Month surge protector |
|
Detail Information |
|||
| Connection: | Ethernet, RJ-45 Cat6, GigE | Line Voltage: | 5V |
|---|---|---|---|
| Operating Voltage: | 6V | Data Rate: | 10/100/1000Mb/s |
| Max Surge Discharge Current: | 5KA(8 To 20μs) | Protected Pins: | All Pins |
| Shell Material: | ABS | Weight: | 52g |
| Size: | 26*26*95mm | Mounting: | Grounding Clip & Grounding Terminal |
| Port: | Xiamen | ||
Product Description

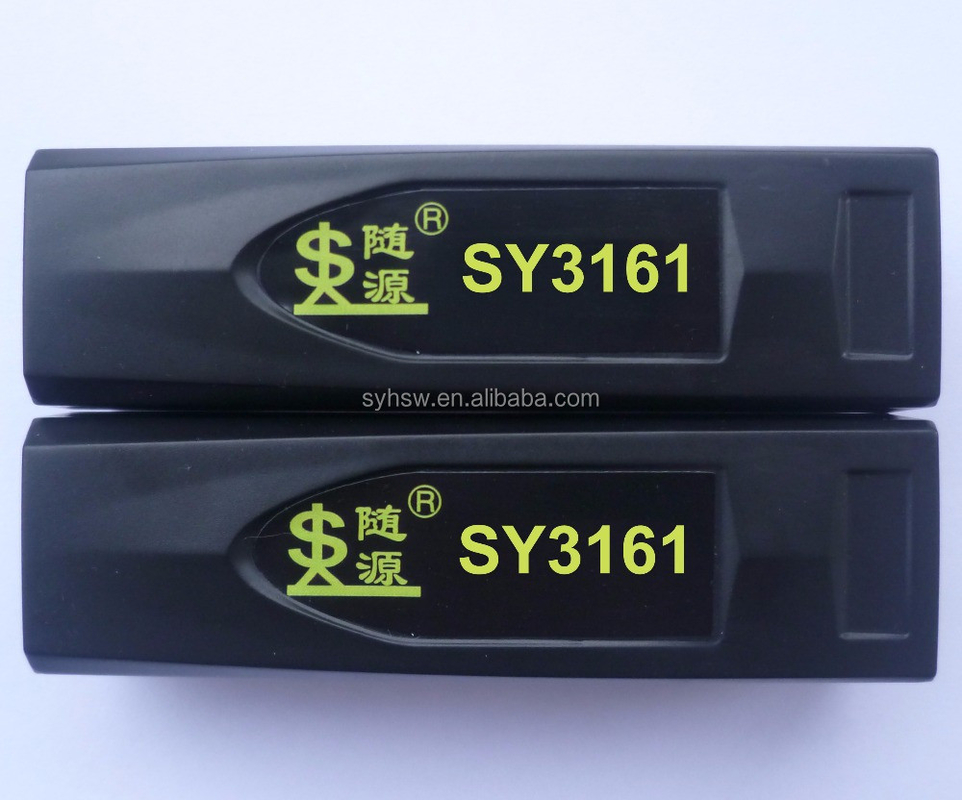

SY3161 rj45 single surge protector gige
1. Specifications Details
| Model | SY3161 |
| Interface | Ethernet RJ45 Cat6 with ALPU GigE |
| Data rate | 10/100/1000Mb/s |
| Line volatge | 5V |
| Max continuous operating voltage | 6V |
| Max surge discharge current | 5KA(8 to 20 μ s) |
| Protected pins | All pins |
| Mounting | Grounding terminal & Grounding clip |
| Shell material | ABS |
| Dimension | 26*26*95mm |
| Package inch | 40*27*105mm |
| Weight | 52g |
2. Dimensions
3.Main feature:
1.ABS material profile shell, attractive and durable, good shielding effect;
2.RJ 45, convenient to use, reliable connection;
3.Introducing multilayer protection circuit, selecting the latest high-speed surge protection device of quick response, low output residual voltage and super transmission performance.
4.Package
Surge protector x 1
Grounding terminal / Grounding clip x 1
Manuals/ Instruction x 1
5.Certificates:
CE certificate
Compliant to ROHS
Lead-free
6.Service
A. OEM
B. If there is other requirements for surge protector, pls send your specs, we will design for you.
Welcome your inquiry, we will do our best to support you!
