5KA Max Surge Discharge Current Ethernet Network Surge Protector with ABS Shell Material
Product Details:
| Place of Origin: | Fujian, China |
| Brand Name: | SY |
| Model Number: | SY3161 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 pieces |
|---|---|
| Price: | $7.00 - $11.00/pieces |
|
Detail Information |
|||
| Connection: | Ethernet, RJ-45 Cat6, GigE | Line Voltage: | 5V |
|---|---|---|---|
| Operating Voltage: | 6V | Data Rate: | 10/100/1000Mb/s |
| Max Surge Discharge Current: | 5KA(8 To 20μs) | Protected Pins: | All Pins |
| Shell Material: | ABS | Weight: | 52g |
| Size: | 26*26*95mm | ||
Product Description
Lightning arrester / RJ45 surge protector SY3161
RJ45 surge protector is special used in the network system and its different types can satisfy different defence thunder areas. The connector of its input and output is RJ45 male/female connector, which is easily connected and installed. It is main used in service equipment, inner LAS and HuB, and boardband RJ45 interface protection for protecting the equipment which will be damaged by the over voltage of the earth or the line inductance.
GigE surge protector SY3161 is one of RJ45surge protector, with DPR to against the lightning.
1. Specifications Details
| Model | SY3161 |
| Interface | Ethernet RJ45 Cat6 with ALPU GigE |
| Data rate | 10/100/1000Mb/s |
| Line volatge | 5V |
| Max continuous operating voltage | 6V |
| Max surge discharge current | 5KA(8 to 20 μ s) |
| Protected pins | All pins |
| Mounting | Grounding terminal & Grounding clip |
| Shell material | ABS |
| Dimension | 26*26*95mm |
| Package inch | 40*27*105mm |
| Weight | 52g |
2. Dimensions
3.Main feature:
1.ABS material profile shell, attractive and durable, good shielding effect;
2.RJ 45, convenient to use, reliable connection;
3.Introducing multilayer protection circuit, selecting the latest high-speed surge protection device of quick response, low output residual voltage and super transmission performance.
4.Package

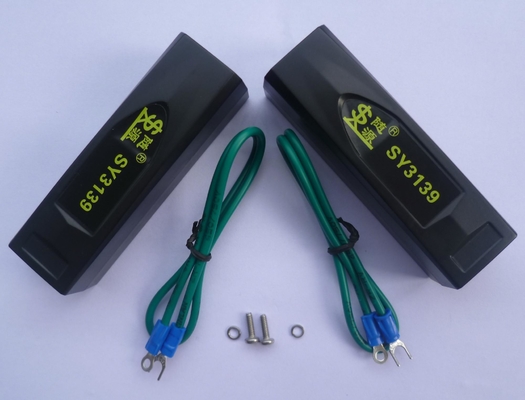

Surge protector x 1
Grounding terminal / Grounding clip x 1
Manuals/ Instruction x 1
5.Certificates:
CE certificate
Compliant to ROHS
Lead-free
6.Service
A. OEM
B. If there is other requirements for surge protector, pls send your specs, we will design for you.
Welcome your inquiry, we will do our best to support you!
