6.8Vpk Operating Voltage SY3137 RJ45 Surge Protective Device for Networking Solutions
Product Details:
| Place of Origin: | Fujian, China |
| Brand Name: | SY |
| Model Number: | SY3137 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pieces |
|---|---|
| Price: | $6.70/pieces >=5 pieces |
|
Detail Information |
|||
| Type: | T1 | Rated Voltage: | 48V |
|---|---|---|---|
| Max Discharge Current: | 20 A | Interface: | Ethernet, RJ45 Cat6 |
| Data Rate: | 100Mb/s | Line Voltage: | 5V |
| Operating Voltage: | 6.8Vpk | Max Surge Discharge Current: | 5KA(8-20μs) |
| Protected Pins: | (1,2)(3,6)(4,5)(7,8) | Mounting: | Grounding Clip & Grounding Terminal |
| Shell Material: | ABS | Size: | 26*26*95mm |
| Weight: | 52g | ||
Product Description
SY3137 rj45 surge protective device 5ka ethernet
1. Specification details
| Model | SY3137 |
| Interface | Ethernet, RJ45 Cat6 |
| Data rate | 100Mb/s |
| Line voltage | 5V |
| Operating voltage | 6.8V |
| Max surge discharge current | 5KA(8-20 μ s) |
| Protected pins | (1,2)(3,6)(4,5)(7,8) |
| Mounting | Grounding clip & Grounding terminal |
| Shell material | ABS |
| Weight | 52g |
| Size | 26*26*95mm |
| Package inch | 40*27*105mm |
2. Dimensions
3. Main feature:
--ABS material profile shell, attractive and durable, good shielding effect;
--RJ 45 convenient to use, reliable connection;
--Introducing multilayer protection circuit, selecting the latest high-speed surge protection device of quick response, low output residual voltage and super transmission performance.
4.Package

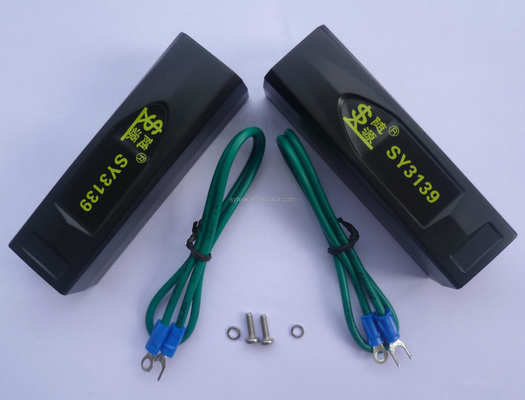

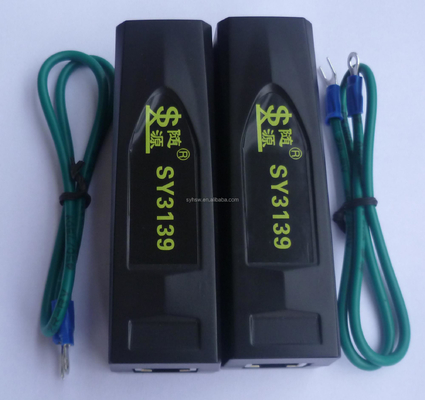

Surge protector x 1
Grounding terminal/Grounding clip x 1
Manuals/Instructions x 1
5.Certificate
CE certificate
Compliant to RoHS
Pb-free
Welcome your inquiry, we will do our best to support you!
If there is other requirements for surge protector, pls send your specs, we will design for you!
/
