1000Mb/s Data Rate POE Surge Protective with 48V and All Protected Pins J45
Product Details:
| Place of Origin: | Fujian, China |
| Brand Name: | SY |
| Model Number: | SY3157 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pieces |
|---|---|
| Price: | $7.80/pieces >=5 pieces |
|
Detail Information |
|||
| Type: | Singal Protection | Rated Voltage: | 48V |
|---|---|---|---|
| Max Discharge Current: | 10 A | Interface: | Ethernet, RJ45 Cat6 |
| Data Rate: | 1000Mb/s | Line Voltage: | 3V |
| Operating Voltage: | 6V | Max Surge Discharge Current: | 5KA(8-20μs) |
| Protected Pins: | All Pins | ||
Product Description

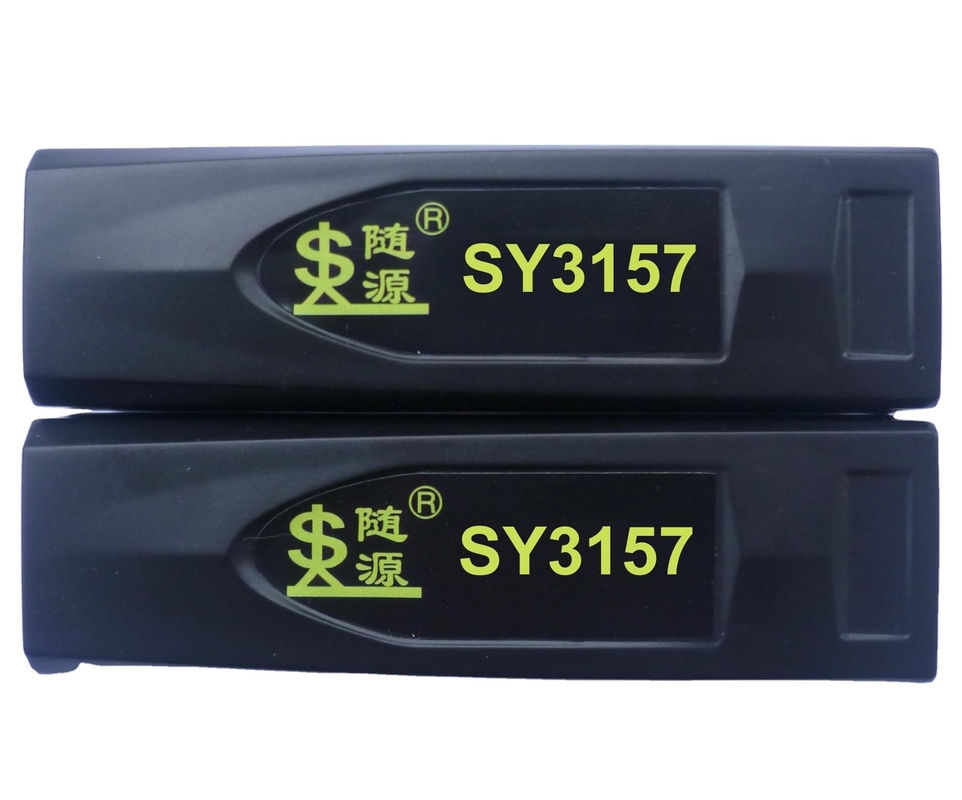

SY3157 rj45 coaxial lightning surge protectors spd
1. Specifications Details
| Model | SY3157 |
| Interface | Ethernet, RJ45 Cat6, with DPR |
| Data rater | 1000Mb/s |
| Line voltage | 3V |
| Max operating voltage | 6V |
| Max surge discharge current | 5KA(8-20 μ s) |
| Protected pins | All pins |
| Mounting | Grounding clip & Grounding terminal |
| Shell material | ABS |
| Weight | 52g |
| Size | 26*26*95mm |
| Package inch | 40*27*105mm |
2. Dimensions
3.Main feature:
--ABS material profile shell, attractive and durable, good shielding effect;
--RJ 45, convenient to use, reliable connection;
--Introducing multilayer protection circuit, selecting the latest high-speed surge protection device of quick response, low output residual voltage and super transmission performance.
4.Package
Surge protector x 1
Grounding teriminal / Grounding clip x 1
Manuals/Instructions x 1
5.Certificates
CE certificate
Compliant to ROHS
Lead-free
