48V Line Voltage POE Surge Protector for 40ka Protection in Telecommunication Systems
Product Details:
| Place of Origin: | Fujian, China |
| Brand Name: | SY |
| Model Number: | SY3138 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 pieces |
|---|---|
| Price: | $5.00 - $8.00/pieces |
| Packaging Details: | Standard Export Packing. |
| Supply Ability: | 100000 Piece/Pieces per Month rj45 surge protector |
|
Detail Information |
|||
| Interface: | Ethernet, RJ45 Cat6, With POE | Data Rate: | 1000Mb/s |
|---|---|---|---|
| Line Voltage: | 48V | Operating Voltage: | POE 75V |
| Max Surge Discharge Current: | 5KA(8-20μs) | Protected Pins: | (1,2)(3,6)(4,5)(7,8) |
| Mounting: | Grounding Clip & Grounding Terminal | Shell Material: | ABS |
| Size: | 26*26*95mm | Weight: | 70g |
| Port: | Xiamen | ||
Product Description

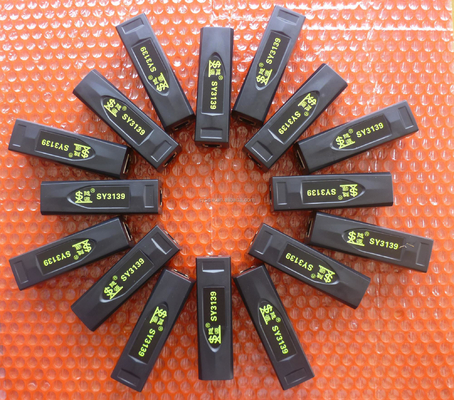

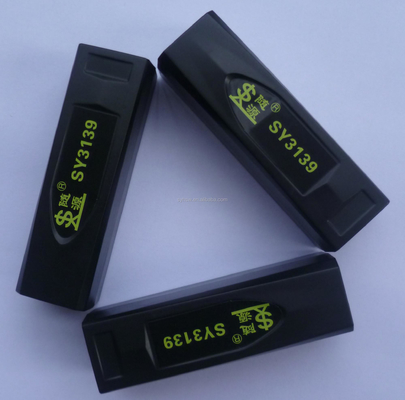

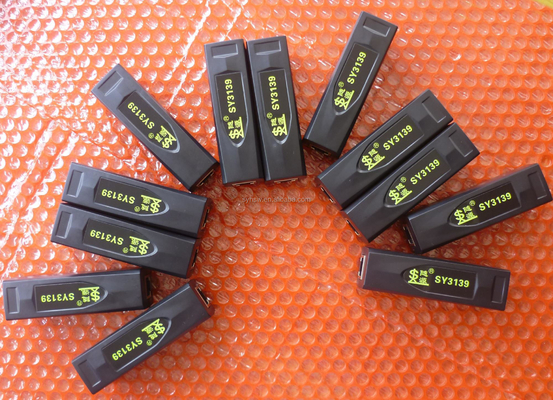

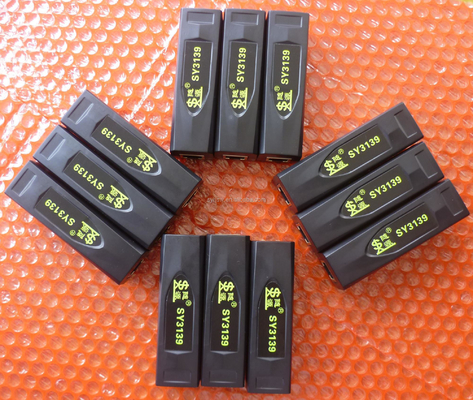

SY3138 rj45 electric surge protector poe
1. Specification details
| Model | SY3138 |
| Interface | Ethernet, RJ45 Cat6, with POE |
| Data rate | 1000Mb/s |
| Line voltage | 48V |
| Max operationg voltage | POE 75V |
| Max surge discharge current | 5KA(8-20us) |
| Protected pins | (1,2)(3,6)(4,5)(7,8) |
| Mounting | Grounding clip & Grounding terminal |
| Shell material | ABS |
| Weight | 70g |
| Size | 26*26*95mm |
| Package inch | 40*27*105mm |
2. Dimensions
3.Main feature:
--ABS material profile shell, attractive and durable, good shielding effect;
--RJ 45 convenient to use, reliable connection;
--Introducing multilayer protection circuit, selecting the latest high-speed surge protection device of quick response, low output residual voltage and super transmission performance.
4.Package
Surge protector x 1
Grounding terminal/Grounding clip x 1
Manuals/Instructions x 1
5.Certificates
CE / Compliant to ROHS / Lead-free
6.Service
A. OEM
B. If there is other requirements for surge protector, pls send us your specs, we will design for you!
Welcome your inquiry, we will do our best to support you!
