Ethernet Interface SY Signal Surge Protective Device for POE 26*26*95mm Compact Design
Product Details:
| Place of Origin: | Fujian, China |
| Brand Name: | SY |
| Model Number: | SY3159 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pieces |
|---|---|
| Price: | $6.70/pieces >=5 pieces |
|
Detail Information |
|||
| Type: | T1, T2 | Rated Voltage: | 48V |
|---|---|---|---|
| Max Discharge Current: | 20 A | Interface: | Ethernet, RJ45 Cat6 |
| Data Rate: | 10/100/1000Mb/s | Line Voltage: | 75V POE75V |
| Operating Voltage: | POE 90V | Max Surge Discharge Current: | 5KA(8-20μs) |
| Protected Pins: | All Pins | Mounting: | Grounding Clip & Grounding Terminal |
| Shell Material: | ABS | Size: | 26*26*95mm |
| Weight: | 52g | ||
Product Description

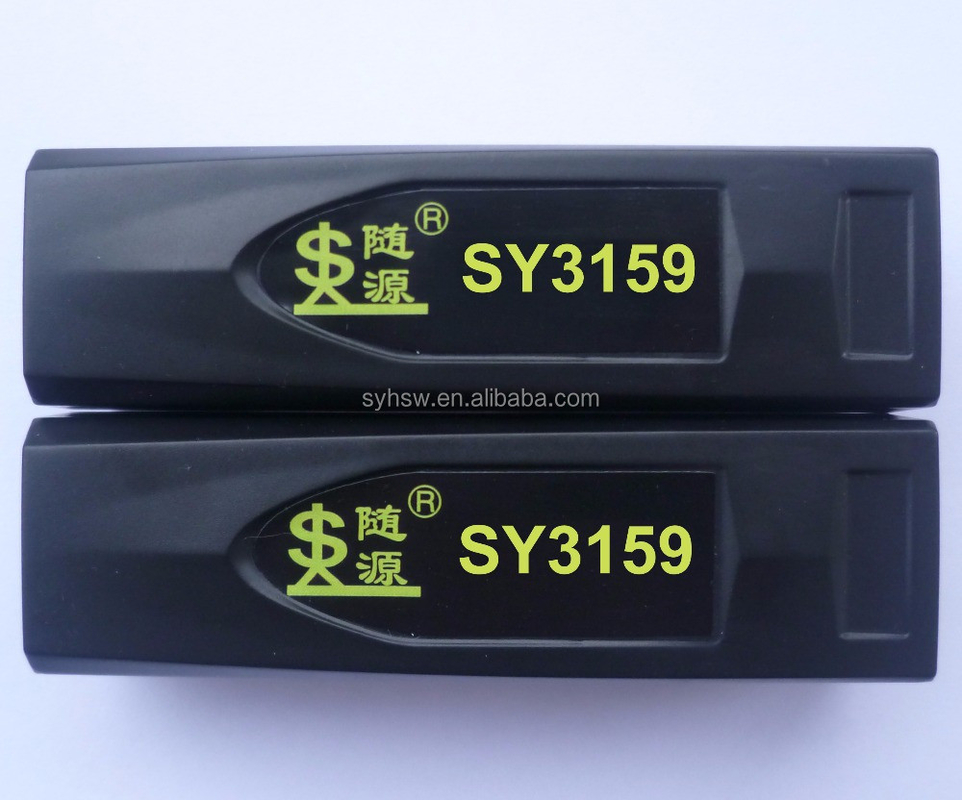

Lightning arrester / RJ45 surge protector/SPD SY3159
This RJ45 surge protective device are widely used to against the lightning in the electronic equipment introducing data system, such as modern, server, working station, Hub, etc.
POE surge protector SY3159 is one of RJ45 surge protector, with DPR to against the lightning.
1.Specifications Details
| Type | SY3159 |
| Connection | Ethernet RJ45 Cat6 with POE |
| Data rate | 10/100/1000Mb/s |
| Line voltage | 75V POE 75V |
| Max continuous operating voltage | POE 90V |
| Max surge discharge current | 5KA (8 to 20 μ s) |
| Protected pins | All pins |
| Mounting | Grounding terminal & Grounding clip |
| Shell material | ABS |
| Dimensions | 26*26*95mm |
| Package inch | 40*26*105mm |
| Weight | 52g |
2.Dimensions
3.Main feature:
--ABS material profile shell, attractive and durable, good shielding effect;
--RJ 45, convenient to use, reliable connection;
--Introducing multilayer protection circuit, selecting the latest high-speed surge protection device of quick response, low output residual voltage and super transmission performance.
4.Package
Surge protector x 1

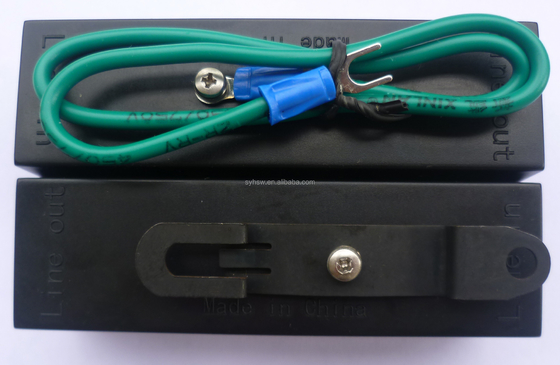

Grounding terminal /Grounding clip x 1
Manuals/Instructions x 1
5.Certificates
CE certificate
Compliant to ROHS
Lead-free
6.Service
A. OEM
B. If there other requirements for surge protector, pls send your specs to us, thanks!
Welcome your inquiry, we will do our best to support you!
