Customized FR4 PCBA Design with 1OZ Copper Thickness and Timely Delivery in 20-25 Days
Product Details:
| Place of Origin: | Fujian, China |
| Brand Name: | SY |
| Model Number: | 102 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 sets |
|---|---|
| Price: | $45.00/sets >=5 sets |
|
Detail Information |
|||
| Power: | 1W | Voltage: | 12V |
|---|---|---|---|
| Packaging Detail: | Carton Box With Vaccum Anti-static Bag Inner | Delivery Detail: | 20~25 Days Total |
| Copper Thickness: | 1OZ | Min. Hole Size: | 0.25mm |
| Min. Line Spacing: | 4mil (0.075mm) | Base Material: | FR4 |
Product Description
Provide PCB assembly manufacturing and PCB design.
1.Specifications
- PCB Assemblying
- Product Design
- Prototyping
- Electronical components purchasing
2.Our PCB Technical Capacities:
| Layer | 1-28layers |
| Base material | FR4/CEM 1/CEM3,94V0 board/Aluminum PCB |
| Copper thickness | 0.5-3OZ |
| Surface finishing | HASL/HASL lead-free/Gold immersion |
| MIN.finished hole size | 0.2mm |
| Solder mask color | Green/Yellow/Red/Blue/Black/White |
| Size | Accoding to you board |
| Inner packing | Vaccum packing/ Plastic bag |
| Outer packing | Standard carton bag |
| Assembly | Lead-free, not lead-free |
3.Documents Needed:
1. PCB gerber file
2.BOM list for electronic components
3.Pls send your PCB board sample to us
4.Lead Time
Samples: 7 days(with gerber file or PCB documents); 12 days(copy board and produce sample service)
Mass produce: 10 to 20days depending on your PCB orders

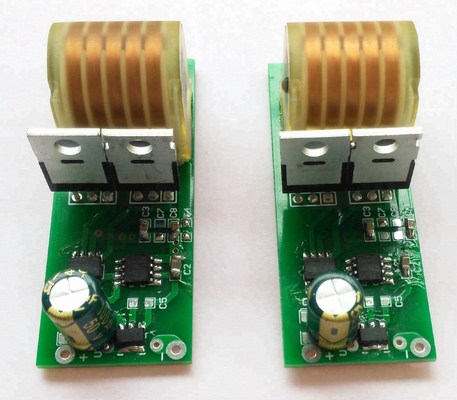

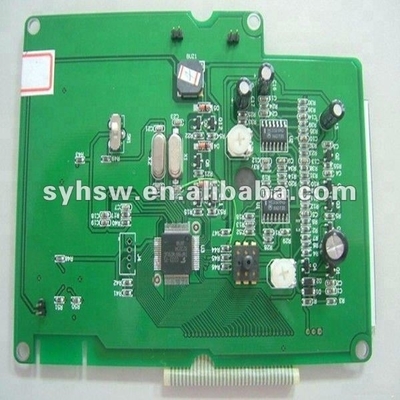

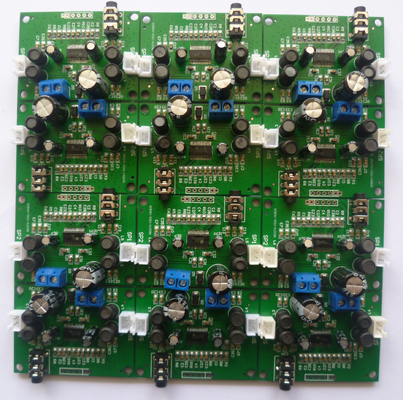

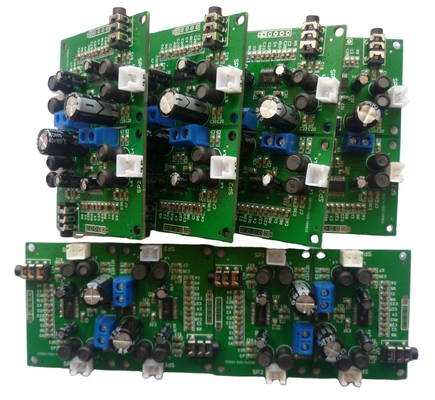

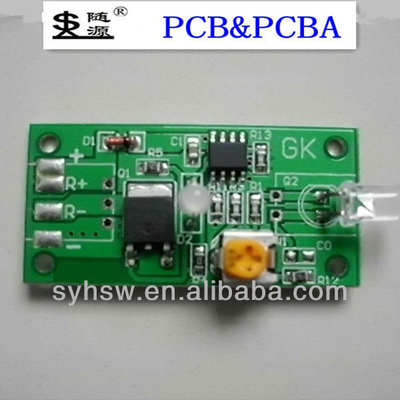

6.Some of Our Product Show
7.View of the Workshop
