CEM3 Blade Material and 24V Voltage for Customized Motor Control Boards Design
Product Details:
| Place of Origin: | Fujian, China |
| Brand Name: | SY |
| Model Number: | 111 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pieces |
|---|---|
| Price: | $50.00/pieces 5-9 pieces |
|
Detail Information |
|||
| Power: | DC Or AC | Voltage: | 24V |
|---|---|---|---|
| Solder Mask Color: | Green/Yellow/Red/Blue/Black/White | Bade Material: | FR4,CEM1,CEM3,94V0 Board |
| Surface Finishing: | HASL/HASL Lead-free/Gold Immersion | Copper Thickness: | 0.5-3OZ |
| Layer: | 1-28 Layers | Inner Packing: | Vaccum Packing/ Plastic Bag |
| Outer Packing: | Standard Carton Bag | ||
Product Description
customized pcba circuit assembly
1.Specifications
- PCB Assemblying
- Product Design
- Prototyping
- Electronical components purchasing
2.Our PCB Technical Capacities:
| Layer | 1-4layers |
| Base material | FR4/CEM 1/CEM3,94V0 board/Aluminum PCB |
| Copper thickness | 0.5-3OZ |
| Surface finishing | HASL/HASL lead-free/Gold immersion |
| MIN.finished hole size | 0.2mm |
| Solder mask color | Green/Yellow/Red/Blue/Black/White |
| Size | Accoding to you board |
| Inner packing | Vaccum packing/ Plastic bag |
| Outer packing | Standard carton bag |
| Assembly | Lead-free, not lead-free |
3.Documents Needed:
---PCB gerber file
---BOM list for electronic components
---Pls send your PCB board sample to us

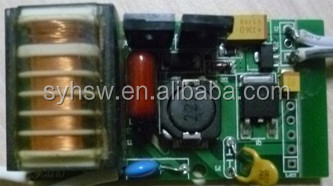

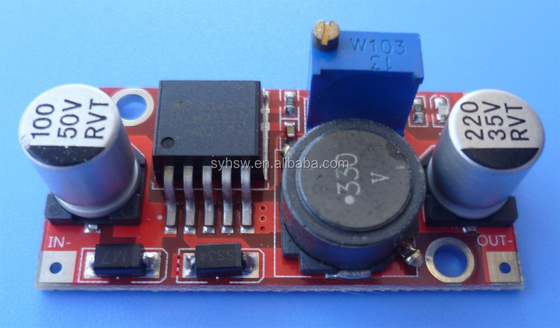

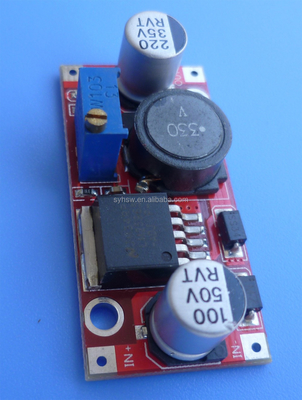

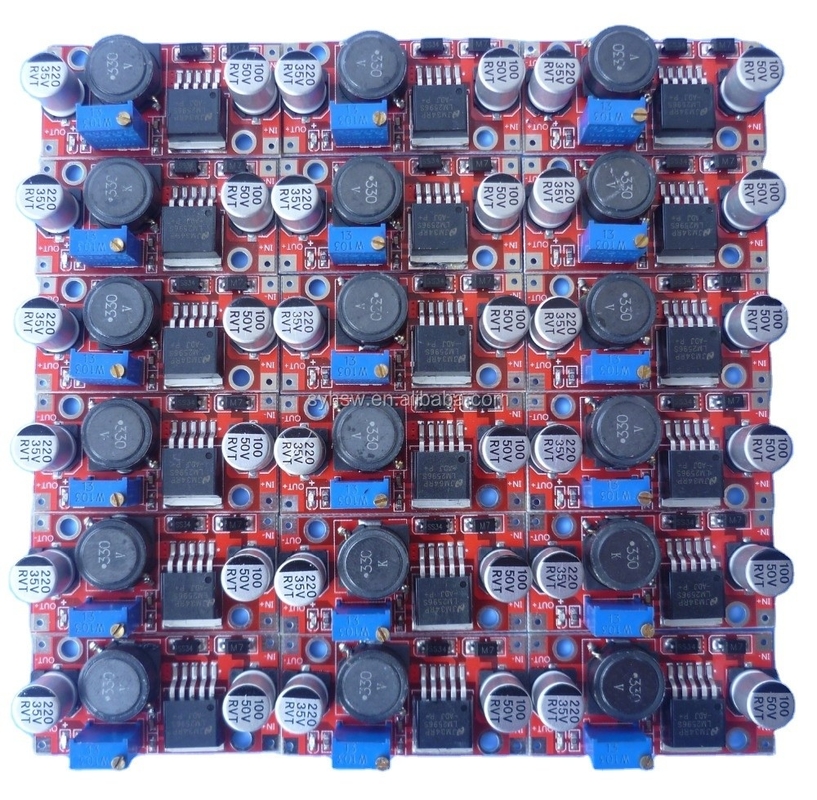

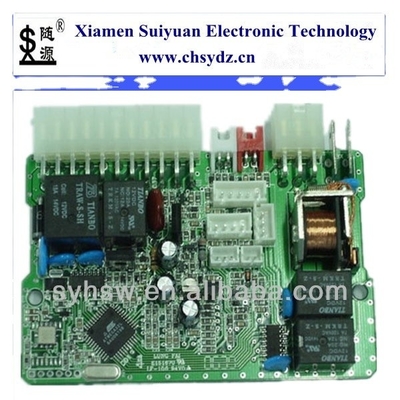

4.Some of Our Product Show
View of the Workshop
Want to Know more details about this product
