1-28 Layers PCB Board Design Manufacturing with Standard Carton Bag Outer Packing
Product Details:
| Place of Origin: | Fujian, China |
| Brand Name: | SY |
| Model Number: | 102 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 pieces |
|---|---|
| Price: | $5.00/pieces >=10 pieces |
|
Detail Information |
|||
| Voltage: | 12V | Current: | 20A |
|---|---|---|---|
| Solder Mask Color: | Green/Yellow/Red/Blue/Black/White | Bade Material: | FR4,CEM1,CEM3,94V0 Board |
| Surface Finishing: | HASL/HASL Lead-free/Gold Immersion | Copper Thickness: | 0.5-3OZ |
| Layer: | 1-28 Layers | Inner Packing: | Vaccum Packing/ Plastic Bag |
| Outer Packing: | Standard Carton Bag | ||
Product Description
Provide PCB assembly manufacturing and PCB design.
1.Specifications
- PCB Assemblying
- Product Design
- Prototyping
- Electronical components purchasing
2.Our PCB Technical Capacities:
| Layer | 1-28layers |
| Base material | FR4/CEM 1/CEM3,94V0 board/Aluminum PCB |
| Copper thickness | 0.5-3OZ |
| Surface finishing | HASL/HASL lead-free/Gold immersion |
| MIN.finished hole size | 0.2mm |
| Solder mask color | Green/Yellow/Red/Blue/Black/White |
| Size | Accoding to you board |
| Inner packing | Vaccum packing/ Plastic bag |
| Outer packing | Standard carton bag |
| Assembly | Lead-free, not lead-free |
3.Documents Needed:
1. PCB gerber file
2.BOM list for electronic components
3.Pls send your PCB board sample to us
4.Lead Time
Samples: 7 days(with gerber file or PCB documents); 12 days(copy board and produce sample service)
Mass produce: 10 to 20days depending on your PCB orders
5.Payment
Western Union, Paypal, T/T accepted
Pls contact us for your PCBA details, we will do our best to service for you!

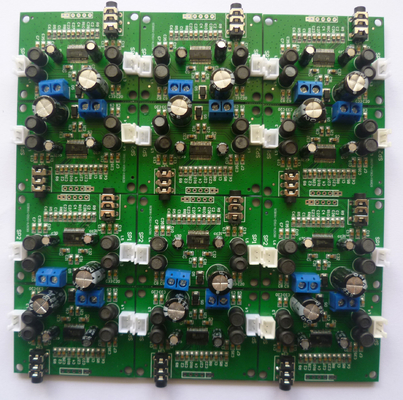

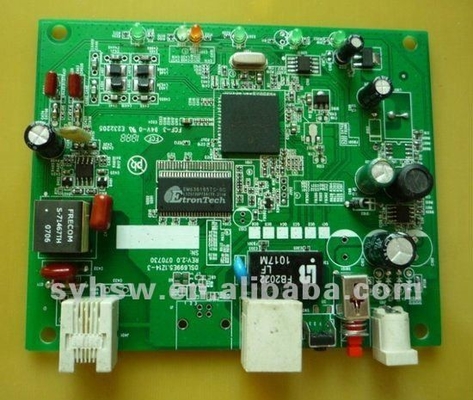

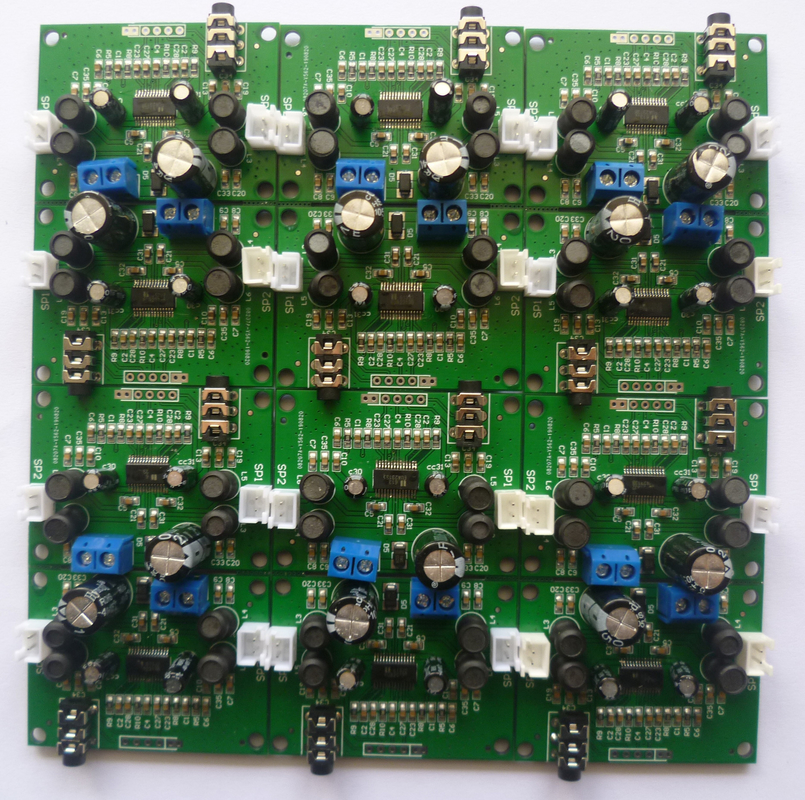

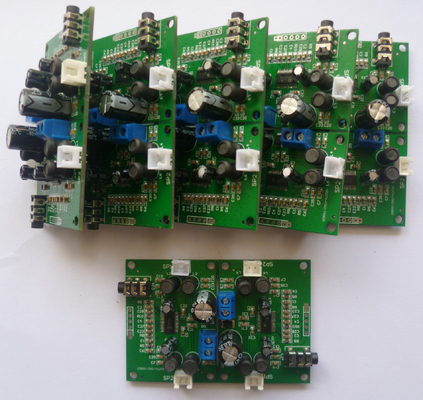

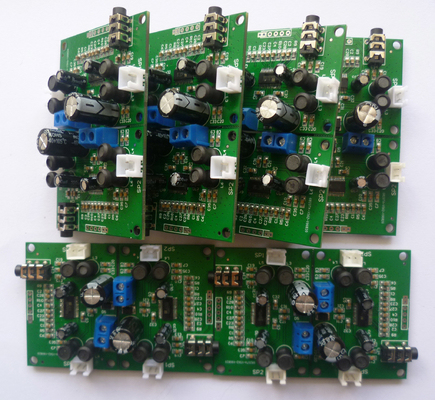

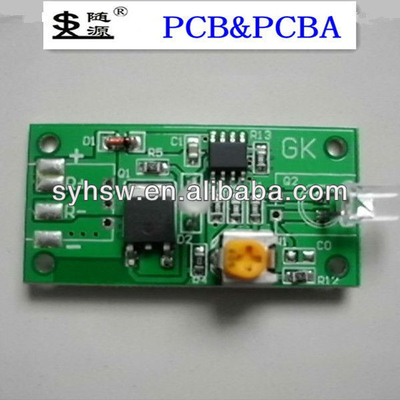

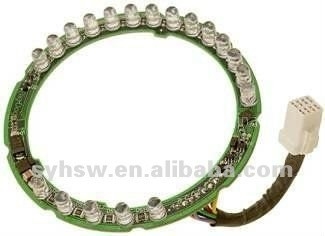

6.Some of Our Product Show
7.View of the Workshop
